Scenes

A scene puts several characters on one stage: each actor plays clips of its own animations on a shared timeline, NLE-style, in front of painted layers with parallax, filmed by a camera you animate. Scenes are part of the Film workspace and render to PNG sequences, WebM and MP4 with every actor's audio.

#How a scene works

A scene is an ordinary project used as a stage, so every tool you already know works on it:

#Making a scene

1. File ▸ New ▸ Scene (several characters) starts a Film project set up as a stage: a camera bone the output frame follows, a background layer with depth, and a first shot (shot 1, 5 s).
2. Add characters: in the tree's Scene section, press ＋ Actor and choose a .rigby file or one of the demos. The character is copied into the scene, so the scene file is complete on its own. It is placed at the center of the view with a first clip at the playhead.
3. Add backgrounds: select a layer bone (such as background) and use File ▸ Import ▸ PNG images…; or add your own layer bones (children of the root) for mountains, trees and foreground props.

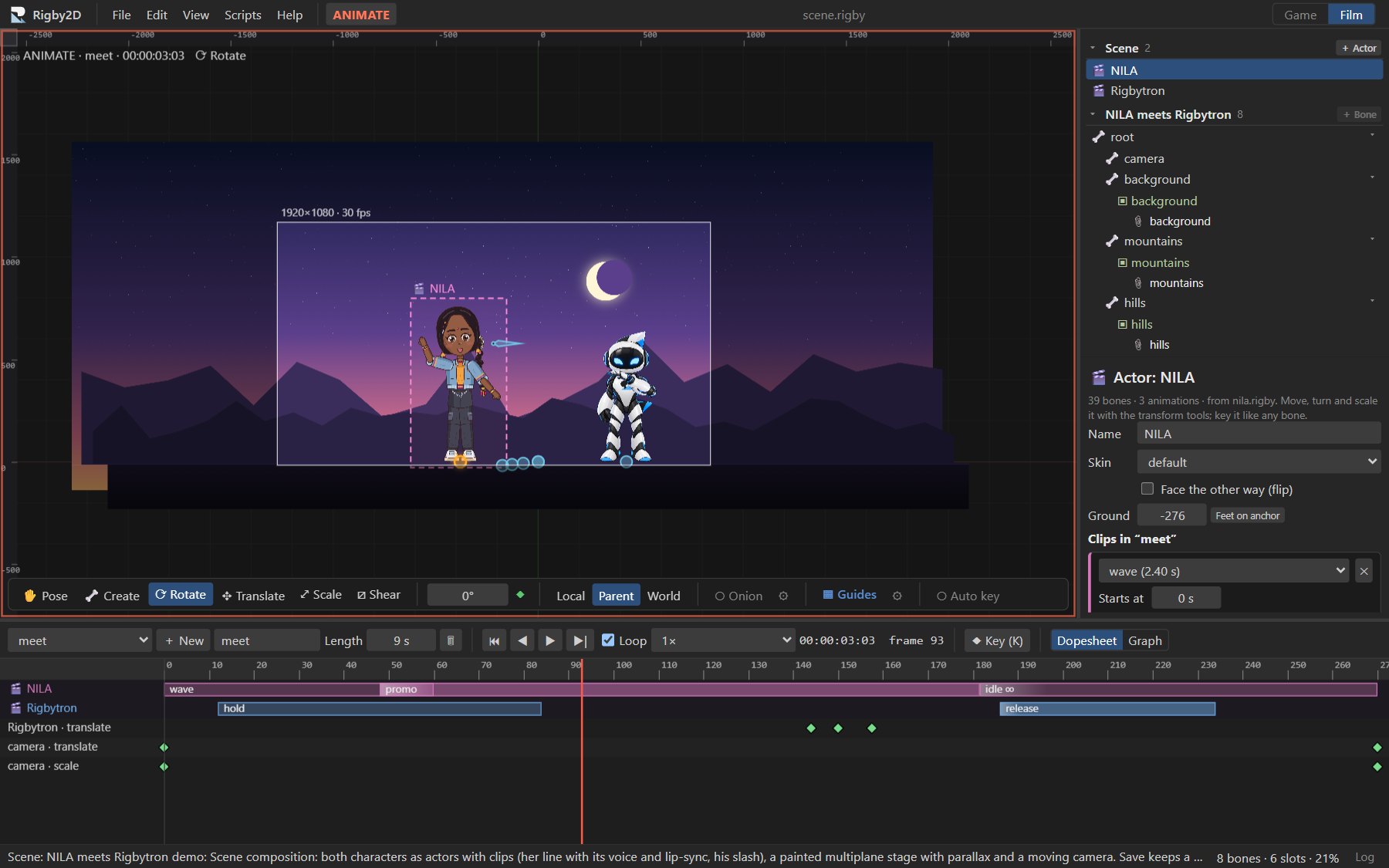

4. Stage it: click an actor in the viewport to select it (a dashed frame shows which), then move, turn and scale it with the transform tools. Actors stand with their feet on their anchor, so keeping anchors at y = 0 keeps everyone on the ground. In Animate mode, key it like any bone to walk it across the stage.
5. Direct it: give each actor its clips (below), key the camera, and play with Space.
6. Render: File ▸ Render animation… renders the shot with every actor, layer and sound.

#Actors

Select an actor (click it in the viewport, or its row in the tree's Scene section) to see the Actor panel above the bone settings:

The actor's anchor bone and slot are ordinary stage bones and slots, which gives you more for free:

• Draw order: an actor is drawn where its slot sits among the stage's slots. Reorder it in the tree's Draw order section, or key the draw order so actors pass in front of each other.
• Fades and tints: the slot's tint colors the whole actor; key its alpha to fade an actor in or out.
• Movement: key the anchor bone's position, rotation and scale. Onion skin and the graph editor work on it as usual.

#Clips

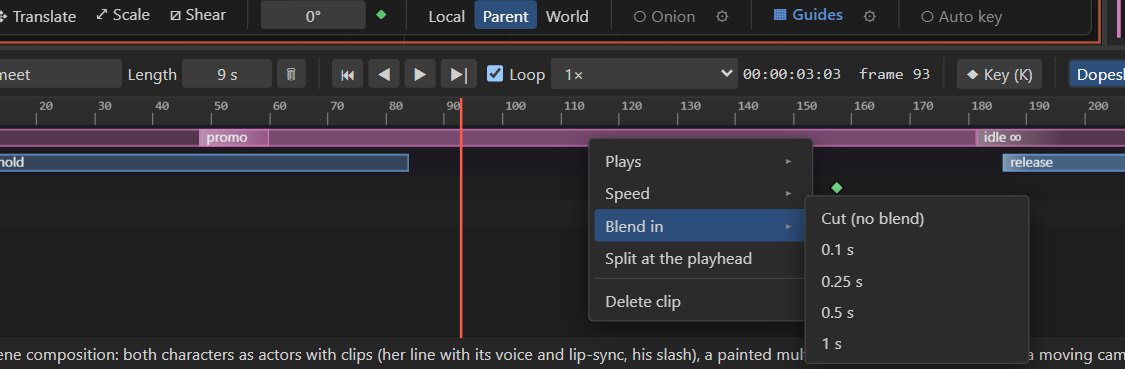

Each actor has a lane at the top of the dopesheet with its clips as bars: the name of the animation, its speed (2×), its loops (×2, ∞), the crossfade from the clip before (a light wedge at its start) and loop boundaries (thin lines).

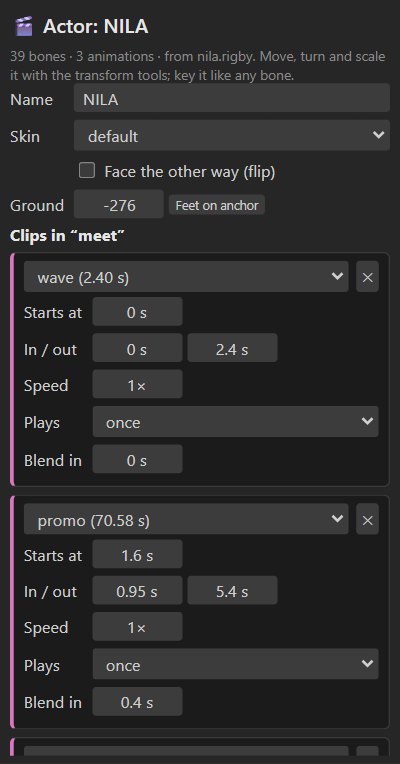

The Actor panel shows the same clips with exact values:

Between clips, the actor holds the last frame of the clip before; before its first clip it stands in its setup pose. The shot grows to fit clips that end after it.

#Audio from clips

An actor's animations keep their audio tracks: when a clip plays an animation that has audio, the scene plays that audio from the clip's in point, cut where the clip ends. Dialogue recorded on a character, with its lip-sync, comes along with the clip into every scene. Clips at another speed than 1× stay silent. The stage's own audio tracks (music, ambience) play as usual, and renders mix everything.

#Layers and parallax

Select a top-level stage bone and set its Depth in the bone panel:

Layers keep the size they were drawn at (like "maintain size" in other tools), so you paint each layer as it should look and set its depth separately. Actors standing on a bone with depth move with that layer.

#Camera

The stage's camera bone frames the output (Project ▸ Output ▸ Framing: Follow the 'camera' bone, set up by New scene). Key its translation to pan, and its scale to zoom (scale 2 shows half as much). View ▸ Show output frame shows what renders.

#Saving

A scene saves as one .rigby file containing the stage, its images and sounds, and every actor's character (stored under actors/ inside it), so it opens anywhere. Each actor keeps its character exactly as it was added; to update a character, remove the actor and add the new version.

Skeleton exports (Export JSON / .skel) contain the stage only; to play a whole scene in a game, use File ▸ Export ▸ Scene for runtimes (see In games and apps).

#Performance

Actors are drawn by the same batched WebGL renderer as everything else, and each actor's pose is computed once per frame. On a desktop PC, the demo scene (two characters, four painted layers) plays at the display's refresh rate in the editor and renders 8 seconds of 720p MP4 with audio in about 3 seconds.

#In games and apps

Scenes play in games as cutscenes, intros or living backgrounds, with the camera, parallax, clips and crossfades exactly as in the editor. File ▸ Export ▸ Scene for runtimes… writes:

Every runtime plays it and matches the editor frame by frame: the Rust runtime is checked against the JavaScript one on the demo scene, physics included.

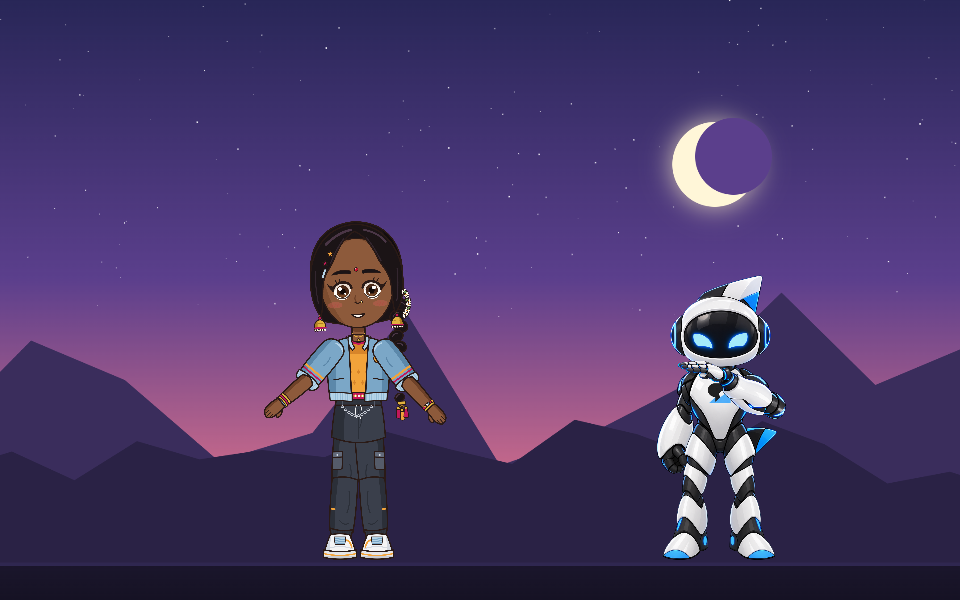

Godot: add a RigbyScene2D node and set Scene File. Follow the stage's camera with a Camera2D:

func _process(_delta: float) -> void:
	$Camera2D.position = $Scene.get_camera_transform().origin

JavaScript:

import { loadScene, readSkeletonJson } from './core/index.js';

const player = await loadScene(manifest, async (file) => readSkeletonJson(await (await fetch(file)).json()).skeleton);
player.play('meet', true);

function frame(dt) {
  player.update(dt);
  // Draw the stage in its draw order; at each actor's slot, draw that actor tinted by the slot.
  renderer.drawSkeleton(player.stage, player.pose, stageTextures, {
    between: (slot) => {
      const actor = player.scene.actors.find((a) => a.slot === player.stage.slots[slot].name);
      if (actor) renderer.drawSkeleton(player.actorDocs.get(actor.id), player.actorPoses.get(actor.id), textures[actor.id]);
    },
  });
}

Rust: rigby_runtime::scene::load_scene returns a ScenePlayer; draw_list() gives the stage slots and actors back to front, and RenderOutput::append layers their geometry.

#Through MCP

An AI assistant can build and direct scenes in .rigby files:

inspect_project describes the scene. See the MCP tool reference.
